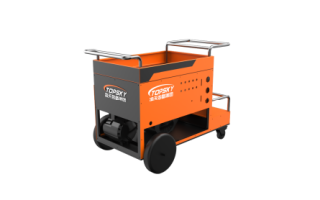

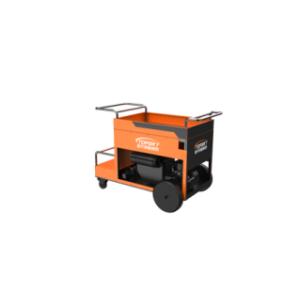

I. Product Overview

II. Scope of Application

• Urban Fire Protection
• Forest Firefighting
• Petrochemical Industry
• Oil Tank Areas
• Large Warehouses

III. Product Features

1. Independent Power Supply
   Driven by an independent gasoline engine, no external power source is required.
2. Integrated Design
   Compact structure, small size, and light weight.
3. Convenient Mobility & Transportation
   Equipped with built-in wheels for short-distance pushing and relocation; it can also be transported over long distances using conventional vehicles.
4. Lightweight Design
   Adopts an aluminum alloy frame + cladding panel, which effectively resists corrosion from water, high temperatures, and high humidity while reducing the module weight.
5. Easy Operation
   One-button start to spray foam immediately.
6. Convenient Connection
   Features open interfaces, enabling joint operations with various fire-fighting equipment such as fire guns and fire-fighting UAVs.
7. Wide Range of Fire Types for Suppression
   Uses compressed air foam as the extinguishing agent, capable of suppressing Class A, B, C, and other types of fires.

IV. Main Technical Specifications

4.1 Equipment Parameters

1. Overall Dimensions: ≤ 1600 × 950 × 1300 mm
2. System No-Load Weight: ≤ 300 kg
3. Water Pump Flow Rate: ≥ 200 L/min
4. System Pressure: 0.6 - 1.2 MPa
5. Compressed Air Foam Gun Spray Distance: ≥ 20 m
6. Outlet Caliber: DN65 Internal Thread Type
7. Suction Port Caliber: DN65 Internal Thread Type
8. Driving Power: Gasoline Engine
9. Driving Power Rating: ≥ 16.6 kW
10. Fuel Tank Capacity: 20 L
11. Operating Time per Refueling: ≥ 3 hours
12. Mixing Ratio: 0.1 - 3%
13. Adjustment Precision: 0.1%
14. Output Flow Rate: 40 - 130 L/min
15. Foaming Multiple: 7 - 20
16. External Foam Concentrate Capacity: 40 L
17. External Interface Caliber for Foam Concentrate: DN15

V. Product Application

• Suitable for early-stage fire suppression in urban, forest, petrochemical, oil tank area, and large warehouse scenarios.
• Can be used independently or in collaboration with fire-fighting UAVs, fire guns, and other equipment for joint fire-extinguishing operations.

VI. Product Configuration

1. 1 set of Mobile Compressed Air Foam System
2. 2 rolls of KD65 (16-65-20) Fire Hose (onboard)
3. 1 unit of 25mm Foam Gun
4. 1 unit of 2 m³ Flexible Water Storage Tank
5. 1 piece of 2-meter Suction Pipe (including filter)
6. 1 piece of DN80 to DN65 Internal Thread Adapter
7. 1 piece of DN65 to DN50 Internal Thread Adapter
8. 1 piece of DN50 Internal Thread to DN40 Forest Fire Adapter
9. 1 copy of Certificate of Conformity
10. 1 copy of Product Operation and Maintenance Manual
