Widely Applicable Heavy Load Fire Extinguishing Drone Long Flight Duration

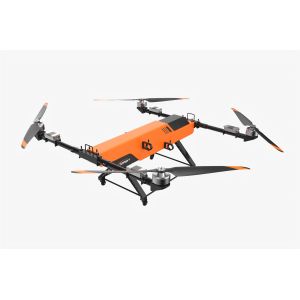

Heavy Load Fire Extinguishing Drone

I. Product Overview

The firefighting drone has a powerful power system and reliable flight control system. It is a fire extinguishing unmanned aerial vehicle platform with high load capacity, long endurance, strong wind resistance, and high reliability. The whole machine is designed with carbon fiber materials and magnesium aluminum alloy, and the arm is foldable, supporting rapid expansion and easy operation; Body profile design, supporting the mounting of various payloads such as tethered water guns, fire extinguishers, etc; Equipped with a safe and reliable high-performance flight control system internally, the flight attitude is stable,; Support various flight modes such as manual flight and fully autonomous flight; It can be widely used in firefighting, emergency rescue, material lifting, etc.

II. Scope of Application

Fire rescue

Emergency rescue

Material lifting

III. Product Features

. Small size

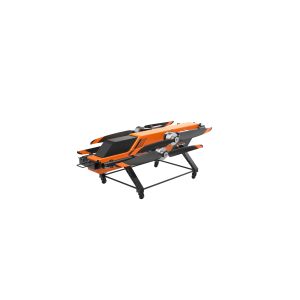

The arm can be folded, taking up less space after folding;
2. Heavy load
The maximum load that can be mounted is 100kg;
3. Flight duration
Equipped with a large capacity battery and efficient motor for long endurance;
4. Widely applicable:
Can be applied to fire rescue, emergency rescue, and material lifting, etc;

IV. Main Technical Indicators

Firefighting drone
1. Maximum takeoff weight: ≥ 210kg
2. Maximum payload: ≥ 100kg
3. Flight endurance: 80min (unloaded) 25min (fully loaded) 40min (50kg)
4. Maximum flight speed: ≥ 15m/s
5. Maximum wind resistance level: Level 7
6. Power battery: 18S 36000 * 6
7. High precision navigation system: GPS+RTK positioning
8. Wheelbase: ≤ 3450mm(±20)
9. Product Material: Carbon Fiber+Aviation Aluminum Alloy
10. Propeller: 63 inch carbon fiber folding propeller
11. Maximum climb speed: ≥ 5m/s
12. Maximum descent speed: ≥ 4m/s
13. Maximum takeoff altitude: 4000m
14. Working temperature:- 20℃~50℃
15. Takeoff and Landing Method: Automatic Vertical Takeoff and Landing
16. Unfolding size (mm): 3550 × 3090 × 1260 (± 20)
17. Folding size (mm): 1600 × 1460 × 1260 (± 20)
18. Empty weight: ≤ 55kg (excluding battery weight)
22. Remote control distance: 5-20km (ground to air, line of sight)
23. Protection level: Ip54
24. Number of rotors: 6 rotors
